Description:
Fused disconnect system for use with Telpower fuses Type TPL.

Ratings:
Volts:  60Vdc
Amps:  70-800A
SCCR:  100kA
Agency Information: CE, UL Recognized, Guide QPQY2, File E97649.

Features and Benefits
• Fusible disconnect transfer switch for primary DC power distribution
• Robust housing and terminal construction for demanding applications
• Panel mounting
• Easily connected to line or load bus

Typical Applications
• Telecommunications DC power circuit protection

Catalog Number     For Use With TPL Series Fuses
15200-602                70-800A

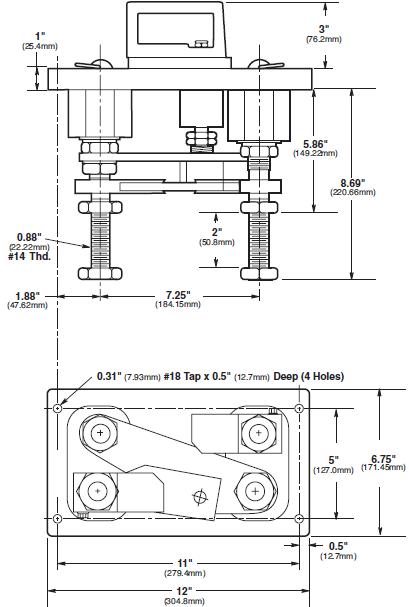

Dimensions - in (mm)
