Description:
Fused disconnect system for use with Telpower fuses Type TPL.

Ratings:
Volts: 60Vdc
Amps: 70-800A
SCCR: 100kA

Agency Information: CE, UL Recognized, Guide QPQY2, File E97649.

Features and Benefits
• Single-pole fusible disconnect switch for primary DC power distribution
• Robust housing and terminal construction for demanding applications
• Panel mounting
• Easily connected to line or load bus

Typical Applications
• Telecommunications DC power circuit protection

Catalog Numbers

15100-401	For use with TPL series fuses	70 to 400A
15100-602		300 to 800A
15100-605		300 to 800A (Short Studs)

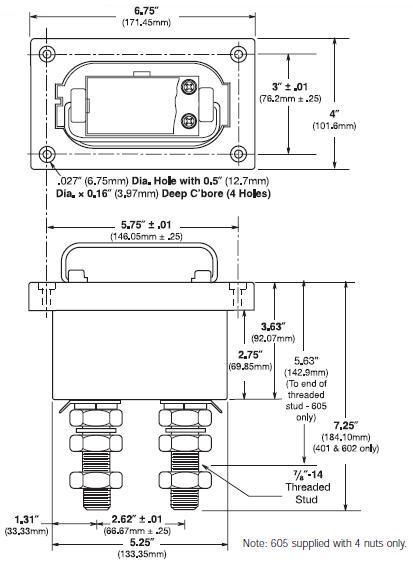

Dimensional Data
15100-401
