Description:
Depluggable rail mount sectional terminal block.

Rating: 40A, 600V

Center Spacing: 0.39" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 Cu
Screw Size: #8-32
Mounting Options: Base Mount, Stackable; End Piece (Part No. KAD) is required for mounting. Mounting screws recommended every 15 circuits.
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C

Agency Information: UL File E62622

Catalog Number     Color
PLK3-WH                 White

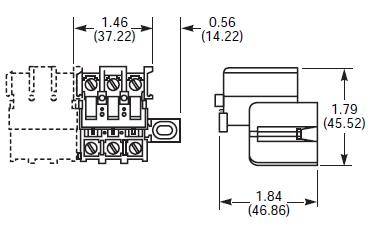

Dimensions - in (mm)
