Description:
Quick connect terminal block.

Quick Connects: 0.250" X .031".
Center Spacing: 0.437" (11.10).
Screw Size: #8-32.
Poles: 1
Circuits Per Foot: 24
Wire Range: AWG #8-22 CU.

Ratings:
Volts: 600V
Amps: 40A

Agency Information:
CE, UL E62622; CSA LR15364.

Flammability Rating: UL 94V2.

Torque Rating: 18 in-lb max.
Mounting Options: Base mount, stackable. End Piece (Cat. No. BQE) is required for mounting. Mounting screws recommended every 8 circuits.

Catalog Number     Color
BNQ21-WH              White

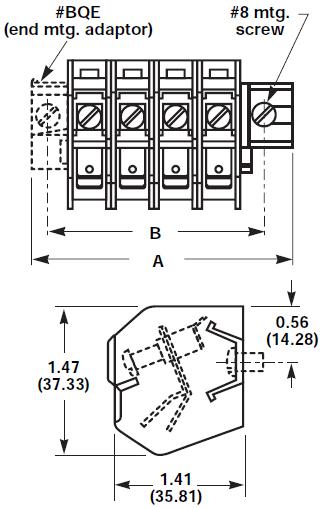

Dimensions - in (mm)
